OP-301A1K

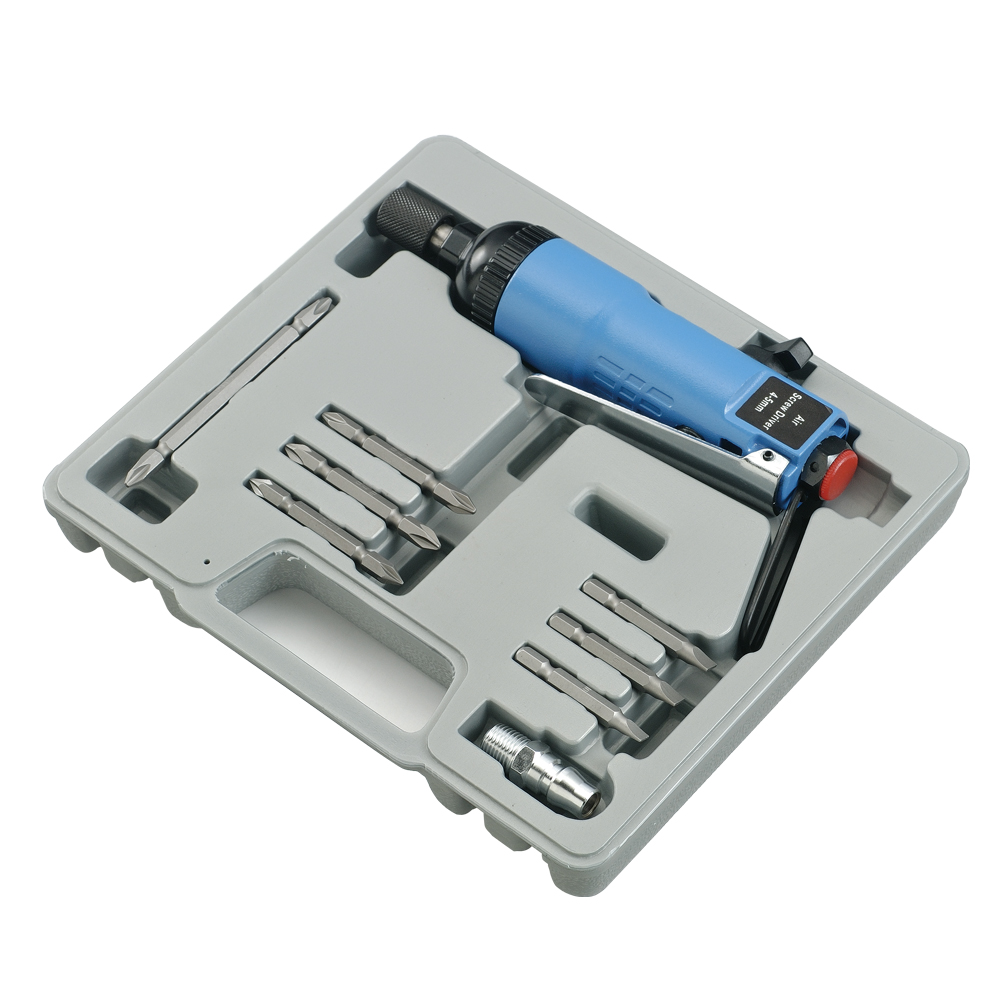

10PCS Air Impact Screwdriver Kit
●1PC Air screwdriver (OP-301A1)
●1PC Slotted: 5mm x 50mm
●2PCS Slotted: 6mm x 50mm
●1PC Phillips: PH1 x 65mm
●2PCS Phillips: PH2 x 65mm
●1PC Phillips: PH2 x 100mm
●1PC 1/4" PT Air Quick Coupler (JAPANESE STYLE)
●1PC Blow case
●1PC Air screwdriver (OP-301A1)
●1PC Slotted: 5mm x 50mm
●2PCS Slotted: 6mm x 50mm
●1PC Phillips: PH1 x 65mm
●2PCS Phillips: PH2 x 65mm
●1PC Phillips: PH2 x 100mm
●1PC 1/4" PT Air Quick Coupler (JAPANESE STYLE)
●1PC Blow case
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | Working Torque | MAX Torque |
Free Speed | Air Consumption | Overall Length |
Air Inlet | Net Weight |
Sound Level | BIT Type |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | |
| OP-301A1 | 4~5 | 25 | 18 | 35 | 26 | 12000 | 127 | 4.5 | 185 | 7.28 | 1/4 | 0.7 | 1.54 | 89 | Q |
Packing List:
Carton : 10 Set / N.W. : 7.1 KGS / G.W. : 13.2 KGS / CUFT : 1.2"
