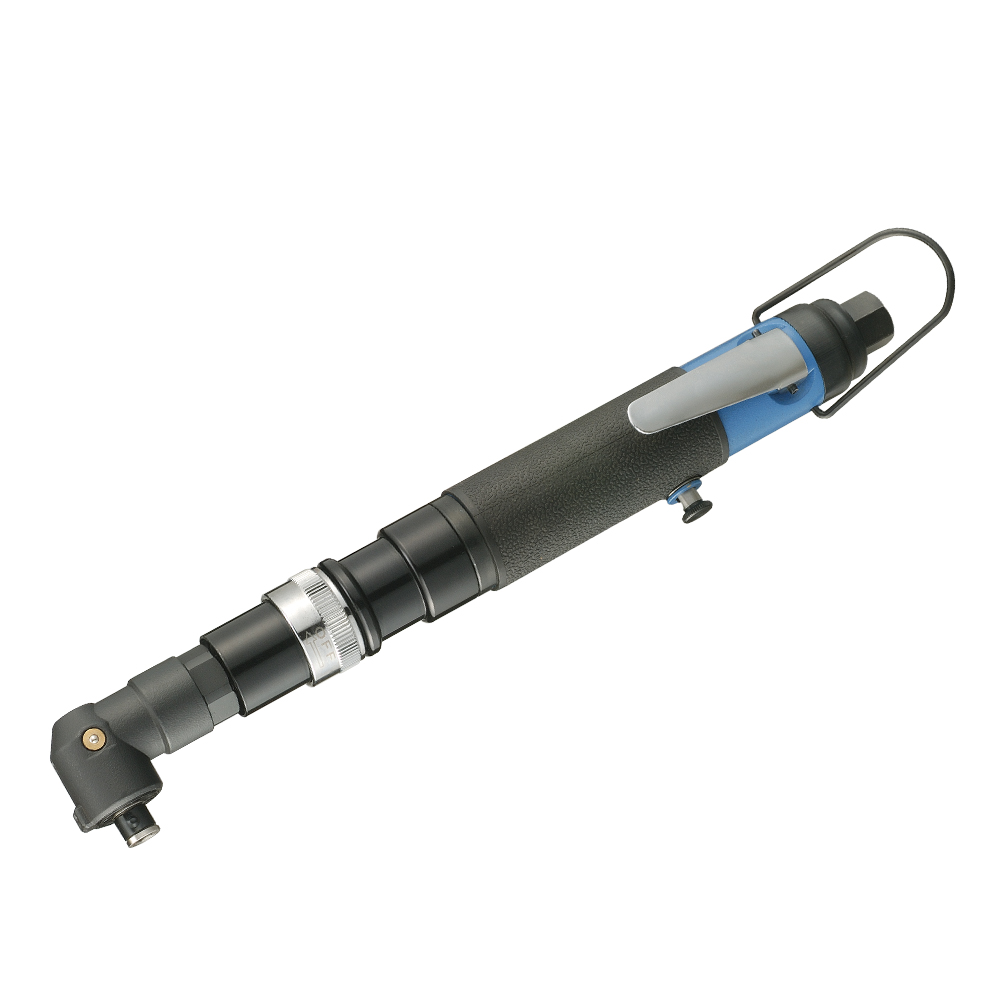

OP-5SLA15
● Low air consumption , light weight and energy saving
● Accuracy : ± 3%
● One hand operation forward and reverse
● reverse button has self locking function
● With lever to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
● Accuracy : ± 3%
● One hand operation forward and reverse
● reverse button has self locking function
● With lever to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | |
| OP-5SLA15 | 4 | 1.2~2.4 | 1450 | 198 | 7 | 340 | 13.39 | 1/4 | 1.22 | 2.69 | 80 | F |
Packing List:
Carton : 10 Pcs / N.W.: 14 KGS / G.W.: 18.8 KGS / Cuft : 1.4"
