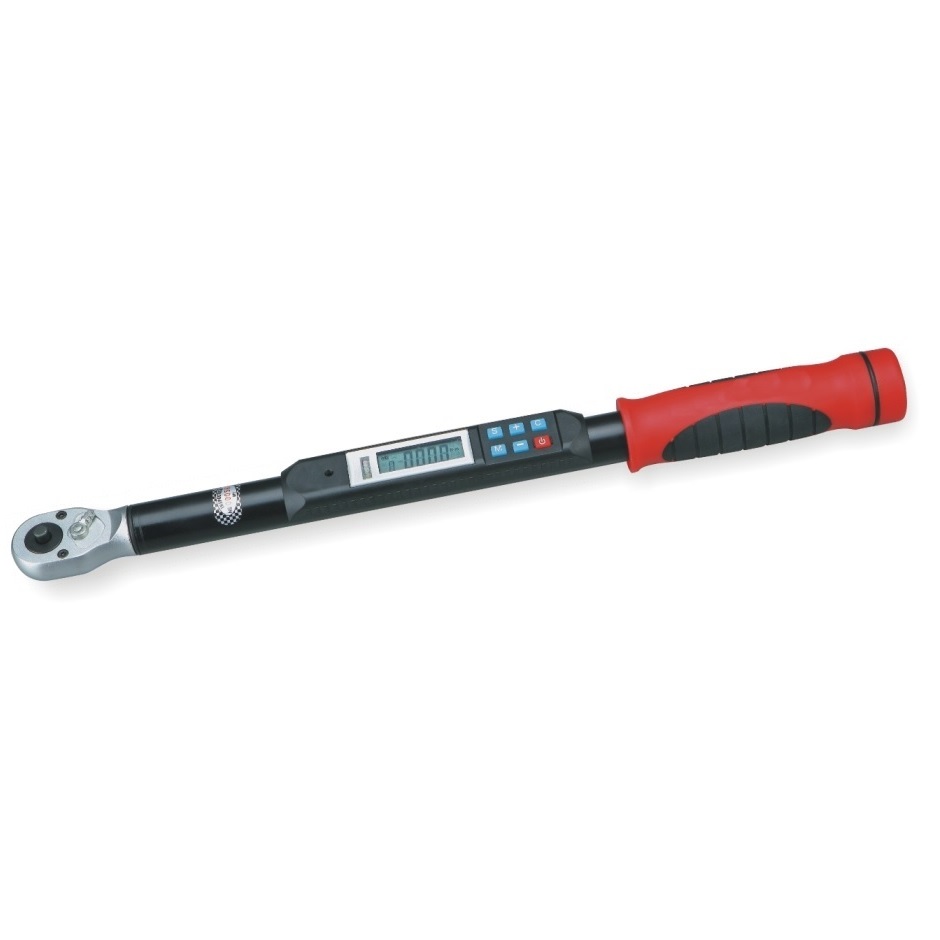

OP-TB100N3、OP-TB100N4、OP-TB200N4
• Industrial application.
• Accuracy : ± 1%
• High accuracy torque tools for quality auditing and production application.
• Easy and flexible operation of design.
• Torque range : 10Nm - 350Nm.
• CW/ CCW Direction.
• Accuracy : ± 1%
• High accuracy torque tools for quality auditing and production application.
• Easy and flexible operation of design.
• Torque range : 10Nm - 350Nm.
• CW/ CCW Direction.
• Accuracy : ± 1%
• Memory : 10 Readings
• Unit Selection : Nm, ft.lb, in.lb, kg-m
• Operating Temperature : -10℃∼55℃
• Storage Temperature : -40℃∼85℃
• RS-232 Data out
• Humidity : 0∼90%
• Battery :1.5V AA Batteries * 3 ( Do not use low self-discharge battery )
• Memory : 10 Readings
• Unit Selection : Nm, ft.lb, in.lb, kg-m
• Operating Temperature : -10℃∼55℃
• Storage Temperature : -40℃∼85℃
• RS-232 Data out
• Humidity : 0∼90%
• Battery :1.5V AA Batteries * 3 ( Do not use low self-discharge battery )
| MODEL | Driver | Capacity | Length | Net Weight |
| inch | Nm | mm | kg | |
| OP-TB100N3 | 3/8 | 10 ~ 100 | 440 | 0.95 |
| OP-TB100N4 | 1/2 | 10 ~ 100 | 440 | 1.06 |
| OP-TB200N4 | 1/2 | 20 ~ 200 | 580 | 1.35 |
| OP-TB350N4 | 1/2 | 35 ~ 350 | 580 | 1.35 |
Packing
12 pcs / Carton
Operating
