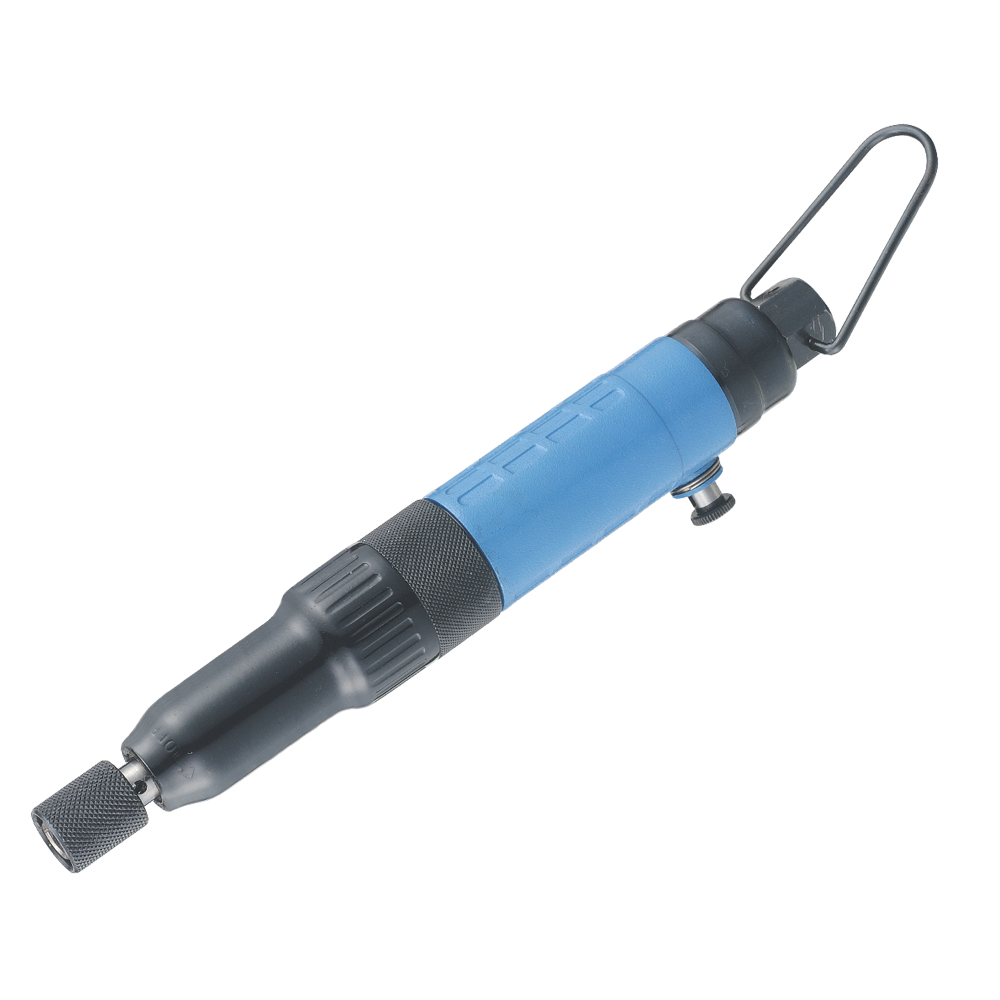

OP-304B1

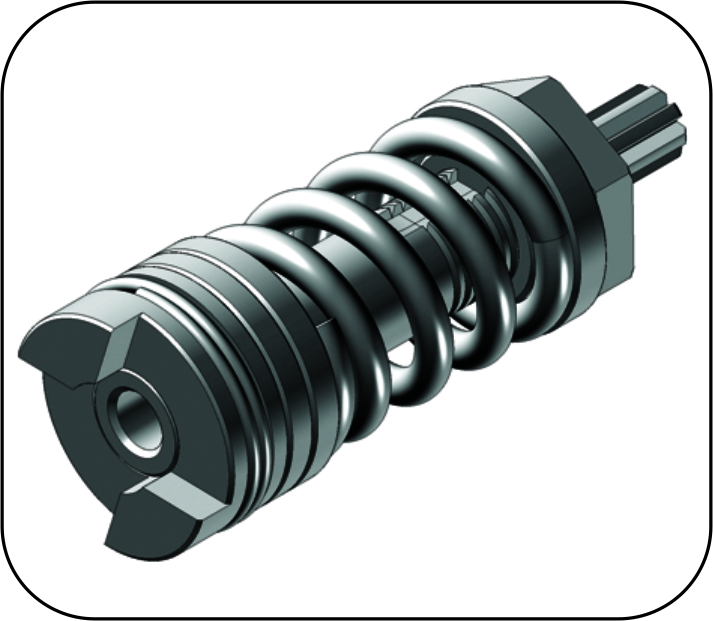

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.

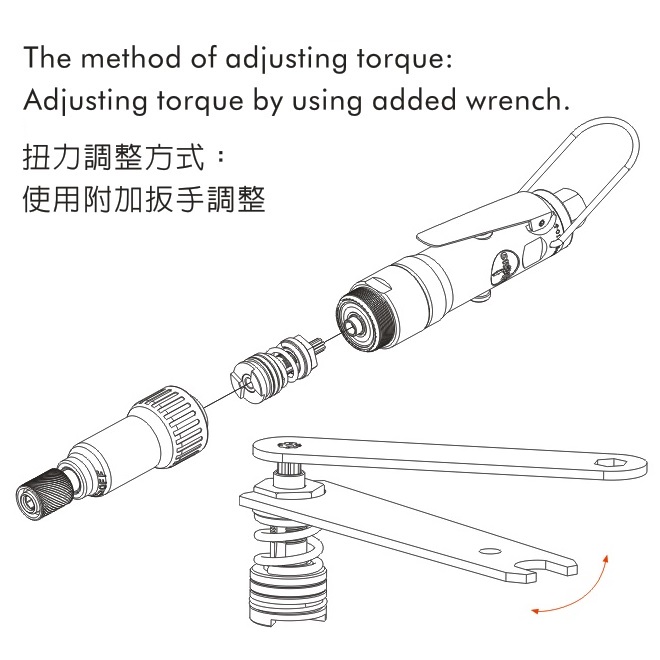

● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Push to start type (Semi-automatic).
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Push to start type (Semi-automatic).
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing list:
Carton : 20 pcs / N.W. : 12.1 KGS / G.W. : 18.72 KGS / CUFT : 1.1"
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |

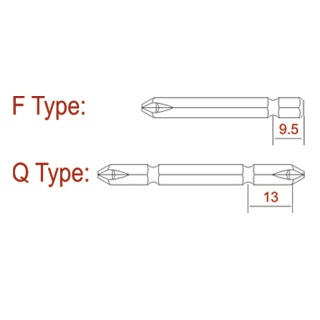

Bit Type |
||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-304B1 | 4 | 1.5 | 1.1 | 1000 | 141 | 5 | 230 | 9.1 | 1/4 | 0.58 | 1.28 | 77 | Q |
Packing list:
Carton : 20 pcs / N.W. : 12.1 KGS / G.W. : 18.72 KGS / CUFT : 1.1"
