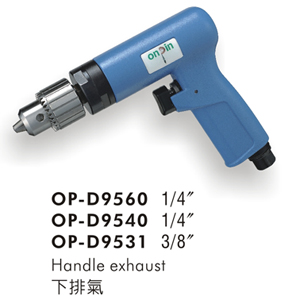

OP-D95185、OP-D9560、OP-D9540、OP-D9531、OP-D9525
(1).Gear type.
(2). Motor Power : 0.9 HP
(2). Motor Power : 0.9 HP
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Chuck Size | Stall Torqu | Free Speed | Air Consumption | Overall Length | Air Inlet | Net Weigh | Reversible | Sound Level | |||||
| mm | inch | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | - | dB(A) | |
| OP-D95185 | 6 | 1/4 | 1.4 | 1 | 18000 | 367 | 13 | 186 | 6.93 | 1/4 | 1.15 | 2.53 | X | 87 |
| OP-D9560 | 6 | 1/4 | 4.4 | 3.2 | 6000 | 367 | 13 | 176 | 6.93 | 1/4 | 1.15 | 2.53 | X | 87 |
| OP-D9540 | 6 | 1/4 | 6.6 | 4.8 | 4000 | 367 | 13 | 176 | 6.93 | 1/4 | 1.15 | 2.53 | X | 87 |
| OP-D9531 | 10 | 3/8 | 8.4 | 6.2 | 3150 | 367 | 13 | 185 | 7.28 | 1/4 | 1.23 | 2.70 | X | 87 |
| OP-D9525 | 13 | 1/2 | 10.4 | 7.6 | 2500 | 367 | 13 | 198 | 7.8 | 1/4 | 1.37 | 3.02 | X | 87 |
