OP-PS5210

● Gear Type
● Nut Size : 5,6,8 mm , 1/4",5/16"
● Quick of forward & backward trigger

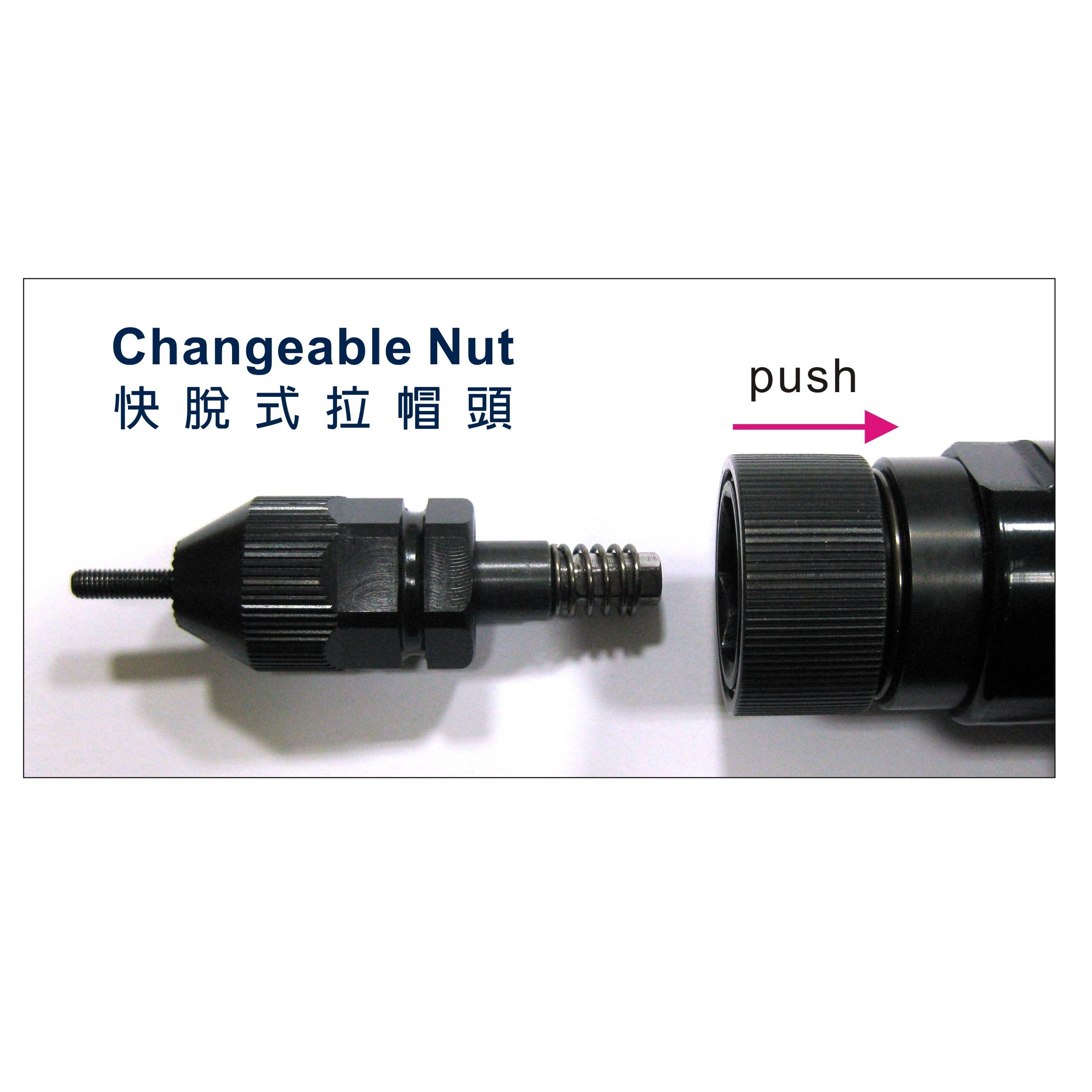

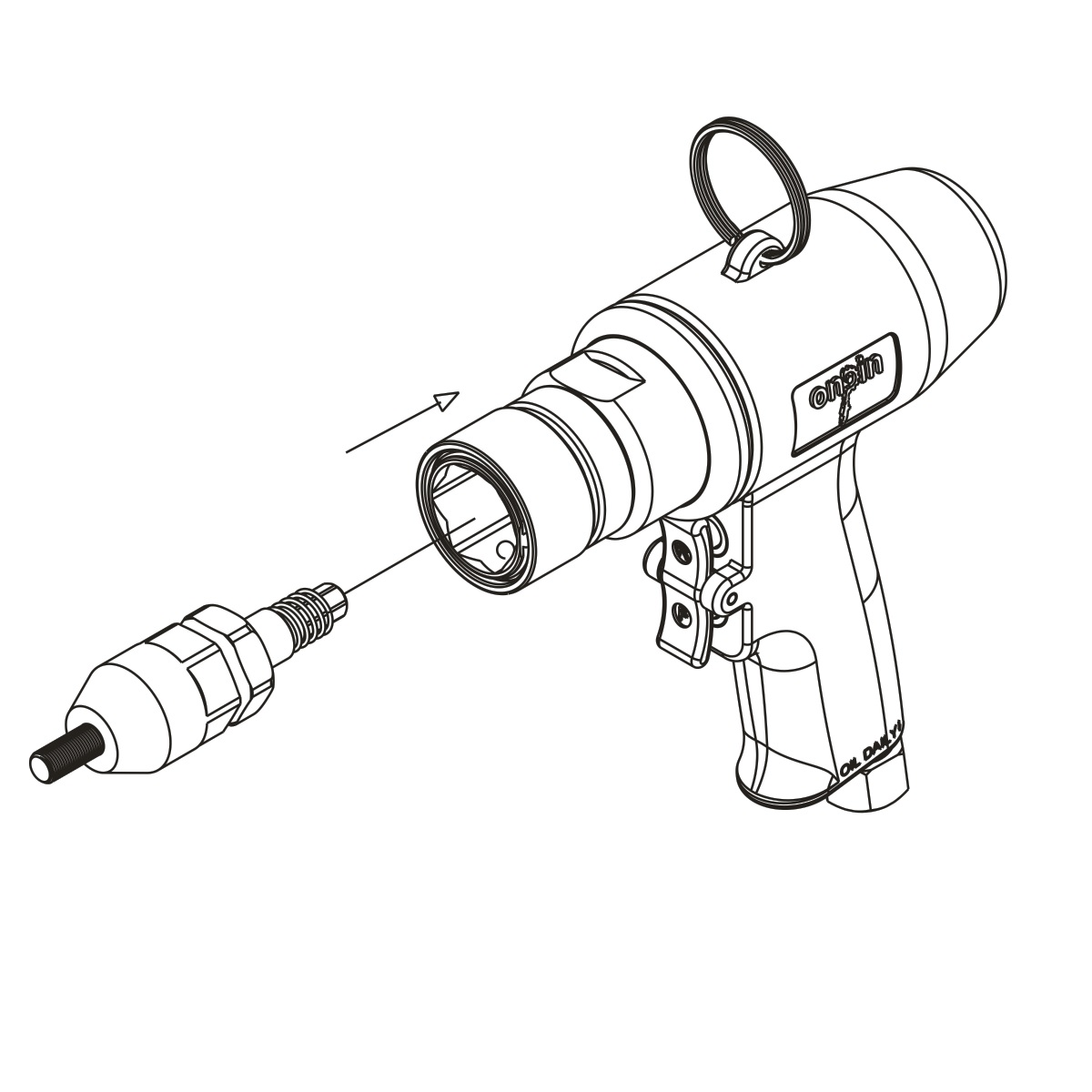

● The type of quick-changing
● Applicable material : Alu. and Steel , can't be use stainless.
● Handle exhaust
Share to:

SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)

MODEL Structure Free Speed Air Cousumption Overall Length Air Inlet Net Weight
  mm mm rpm l/min cfm mm inch P.T kg lb
OP-PS5210 Gear 5,6,8,1/4",5/16"  5,6,1/4"  1000 240 8.5 205 8.07  1/4 1.5 3.3


Nut Tools with order code number reference

Model OP-PS5210
Size Order Code
M5 OP-PS5210-5
M6 OP-PS5210-6
M8 OP-PS5210-8
1/4" OP-PS5210-1/4"
5/16" OP-PS5210-5/16"


Packing List:
Carton : 10 Pcs / N.W. : 15.1 KGS / G.W. : 17.9 KGS / CUFT : 1.7"
