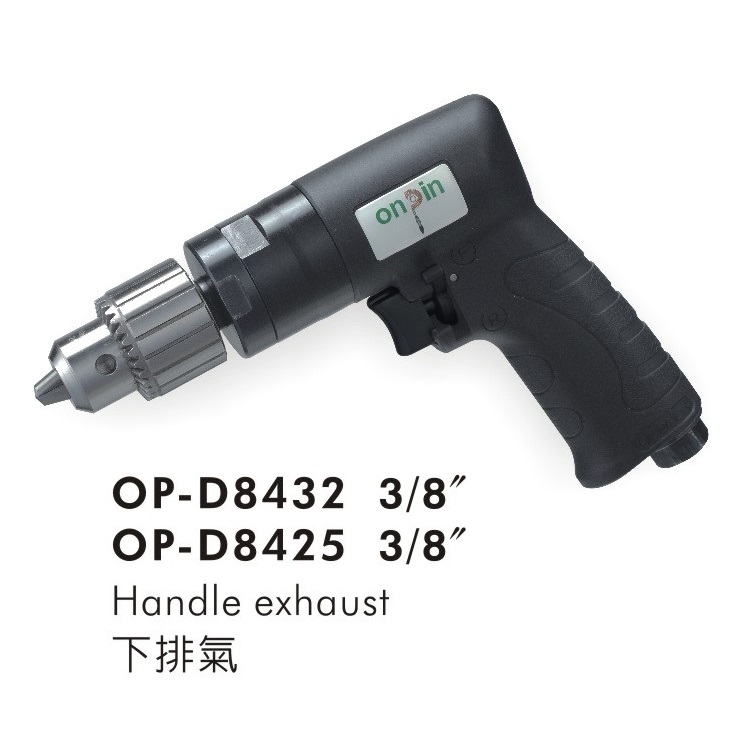

OP-D84140 & OP-D8448 & OP-D8432 & OP-D8425
(1).Gear type.
(2).Composite of material for the tools. Body part and weigh is light. eliminate the cold feeling.Variety of Design for operation of handle..
(3).Non- section switch lever design and easy to press the lever. Pressing switch lever to control the speed.
(4).Handle exhaust design to reduce the noise and dust rebound.
(5). Motor Power : 0.6 HP
(2).Composite of material for the tools. Body part and weigh is light. eliminate the cold feeling.Variety of Design for operation of handle..
(3).Non- section switch lever design and easy to press the lever. Pressing switch lever to control the speed.
(4).Handle exhaust design to reduce the noise and dust rebound.
(5). Motor Power : 0.6 HP
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Chuck Size | Stall Torqu | Free Speed | Air Consumption | Overall Length | Air Inlet | Net Weigh | Reversible | Sound Level | |||||
| mm | inch | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | - | dB(A) | |
| OP-D84140 | 10 | 3/8 | 1 | 0.7 | 14000 | 283 | 10 | 185 | 7.28 | 1/4 | 1.06 | 2.34 | O | 88 |
| OP-D8448 | 10 | 3/8 | 3.14 | 2.3 | 4800 | 283 | 10 | 185 | 7.28 | 1/4 | 1.06 | 2.34 | O | 88 |
| OP-D8432 | 10 | 3/8 | 4.7 | 3.5 | 3200 | 283 | 10 | 185 | 7.28 | 1/4 | 1.06 | 2.34 | O | 88 |
| OP-D8425 | 10 | 3/8 | 6 | 4.4 | 2500 | 283 | 10 | 185 | 7.28 | 1/4 | 1.06 | 2.34 | O | 88 |
