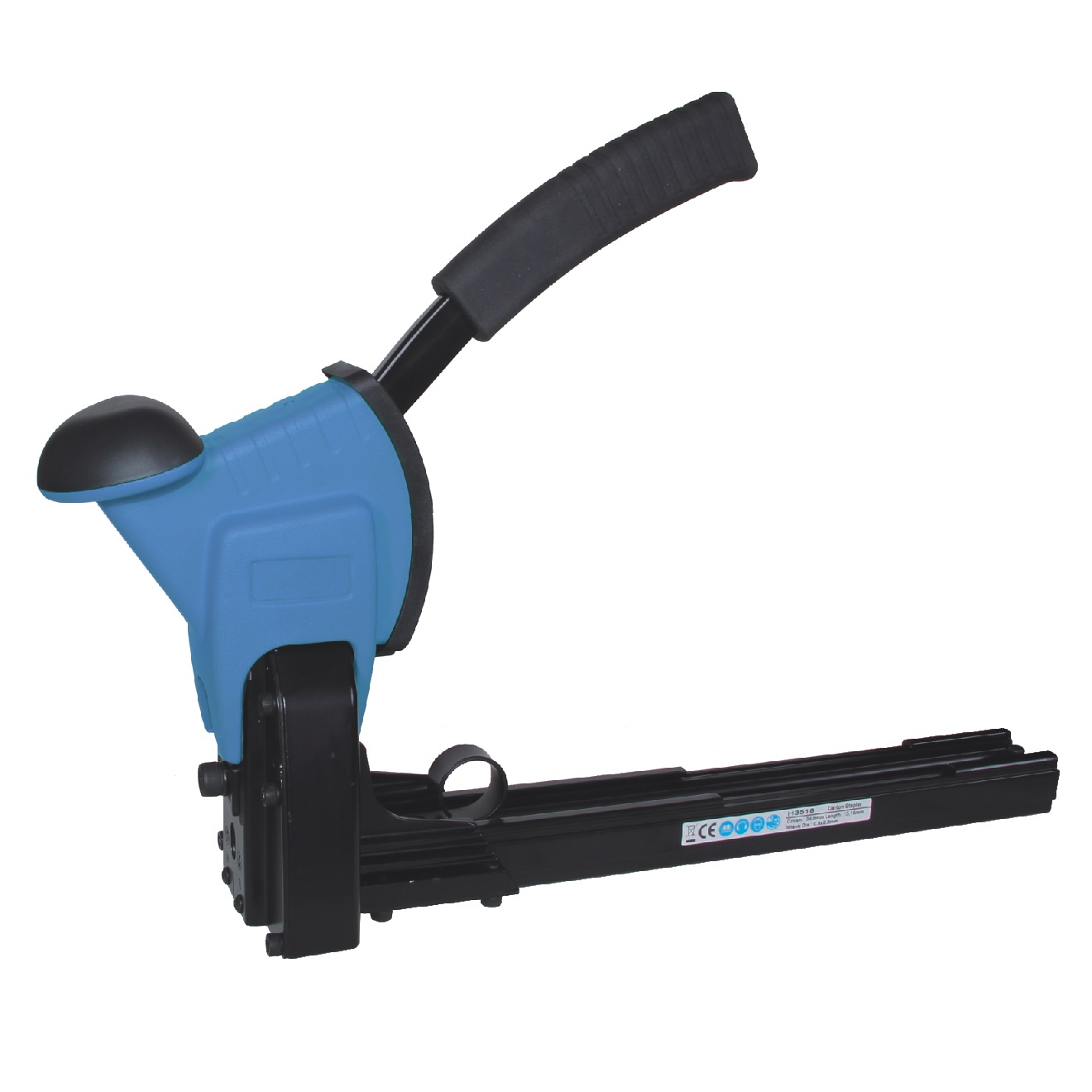

OP-H3218S, OP-H3222S, OP-H3518S, OP-H3522S, OP-H3419S

Share to：

Specification

SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)

Model	Crown	Shank Thickness/Wicth	Length	Dimensions	Load Capacity	Net Weight
Model	mm	mm	mm	H x W x L	pcs	kg
OP-H3218S	32.1	0.9 / 1.9	15&18	310x102x460	100	2.18
OP-H3222S	32.1	0.9 / 1.9	22	310x102x460	100	2.18
OP-H3518S	34.8	0.9 / 2.2	15&18	310x102x460	100	2.18
OP-H3522S	34.8	0.9 / 2.2	22	310x102x460	100	2.18
OP-H3419S	34	0.9 / 2.3	16&19	310x102x460	100	2.18

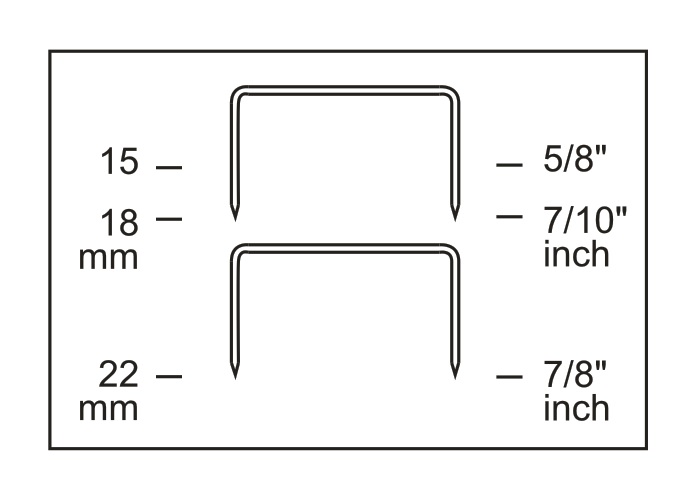

Shank Size :

Packing :

Carton : 4 Pcs / N.W. : 11.2 KGS / G.W. : 12.7 KGS / CUFT : 3"
