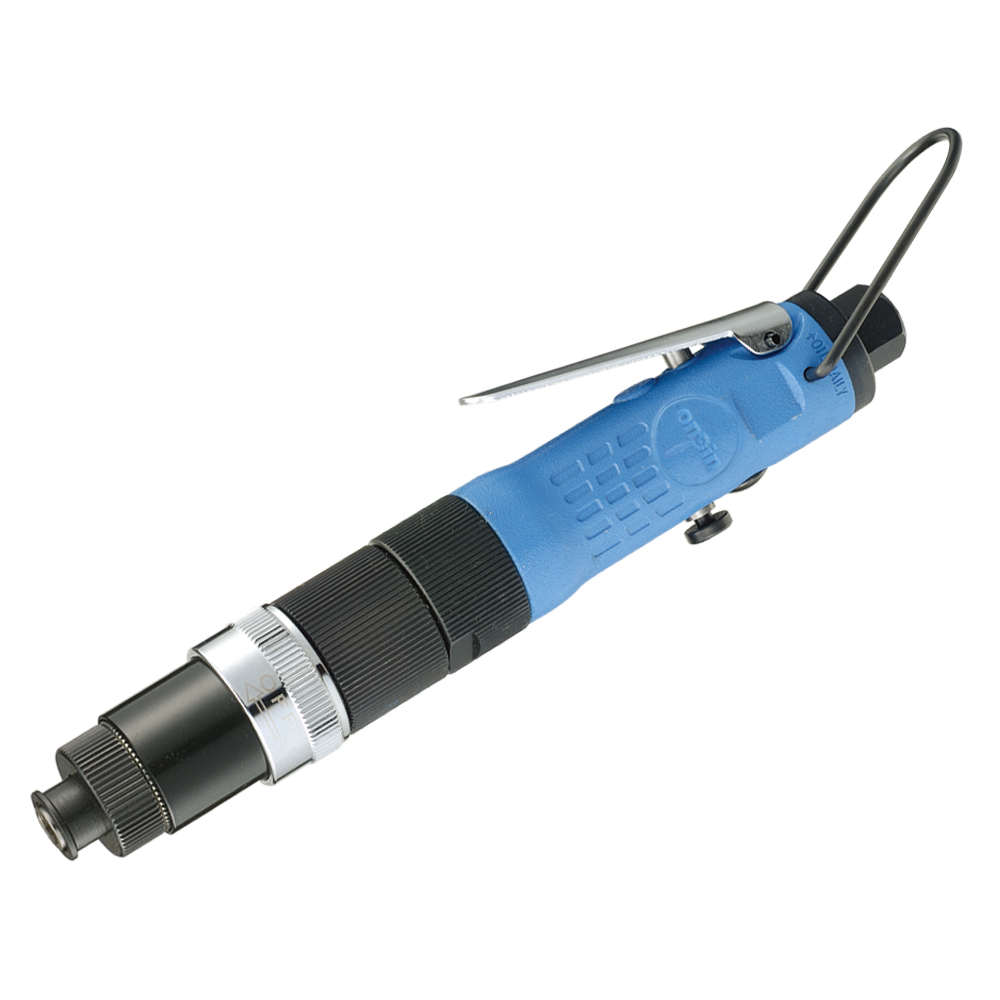

OP-5C1218
● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.

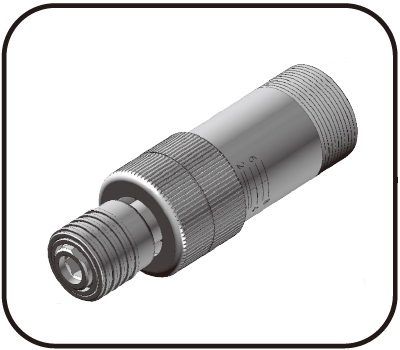

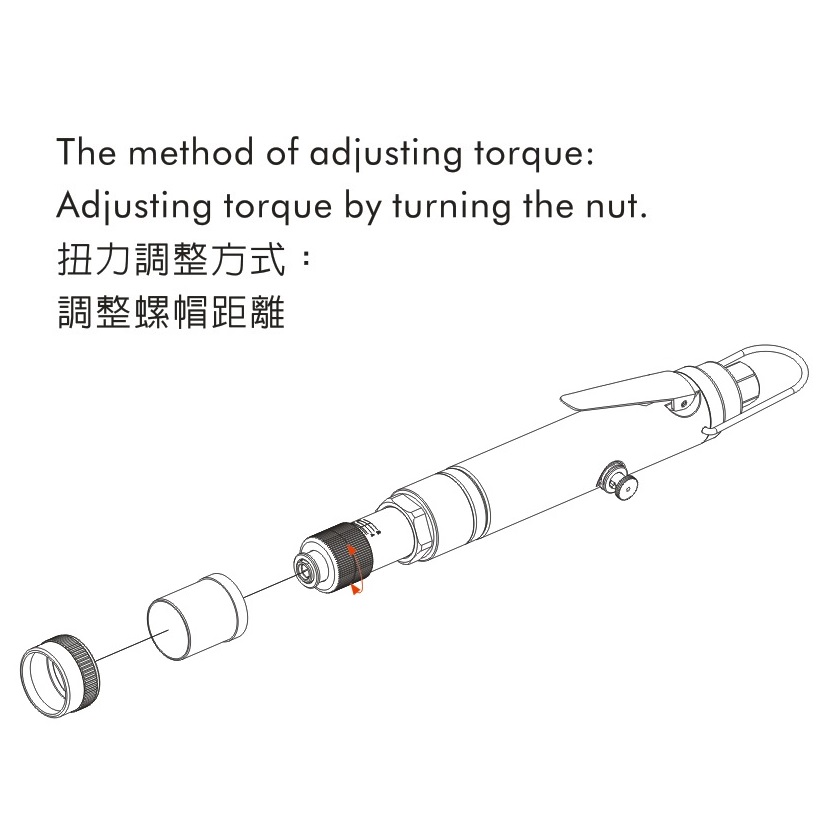

● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing list:
Carton : 20 pcs / N.W. : 15.6 KGS / G.W. : 20.7 KGS / CUFT : 2.0 "
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-5C1218 | 4 | 2.5 | 1800 | 127 | 4.5 | 228 | 8.98 | 1/4 | 0.76 | 1.68 | 80 | F |
Packing list:
Carton : 20 pcs / N.W. : 15.6 KGS / G.W. : 20.7 KGS / CUFT : 2.0 "
