SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Vibration | |||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | m/s2 | |

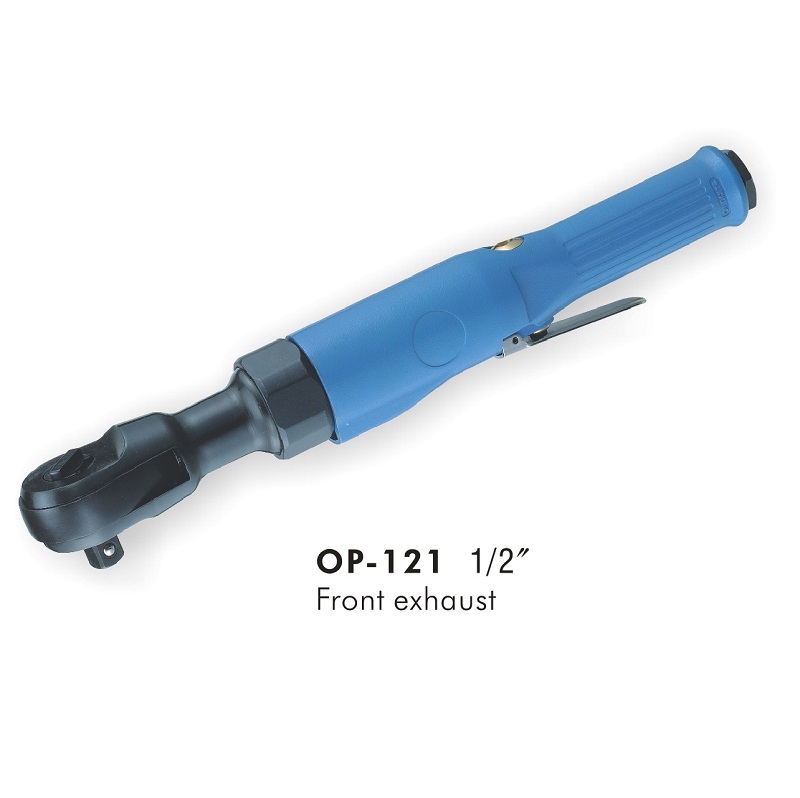

| OP-121 | M10 | 43 | 32 | 100 | 74 | 150 | 339 | 12 | 360 | 14.17 | 1/4 | 2.06 | 4.54 | 92 | 5.3 |
