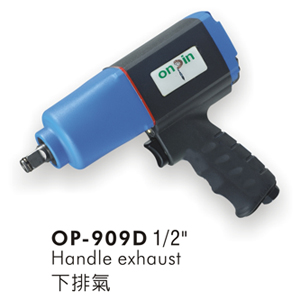

Specifications: OP-909D: Handle exhaust
(1) Large torque.
(2) Long Lasting.
(3) Less vibration than single ring type.
Application: Especially in heavy-productive industries rattan, motor.
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-909D | M18~M20 | 450 | 332 | 550 | 406 | 7300 | 311 | 11 | 210 | 8.27 | 1/4 | 2.15 | 4.74 | 90 |
