OP-906D4
● Large torque.
● Long Lasting.

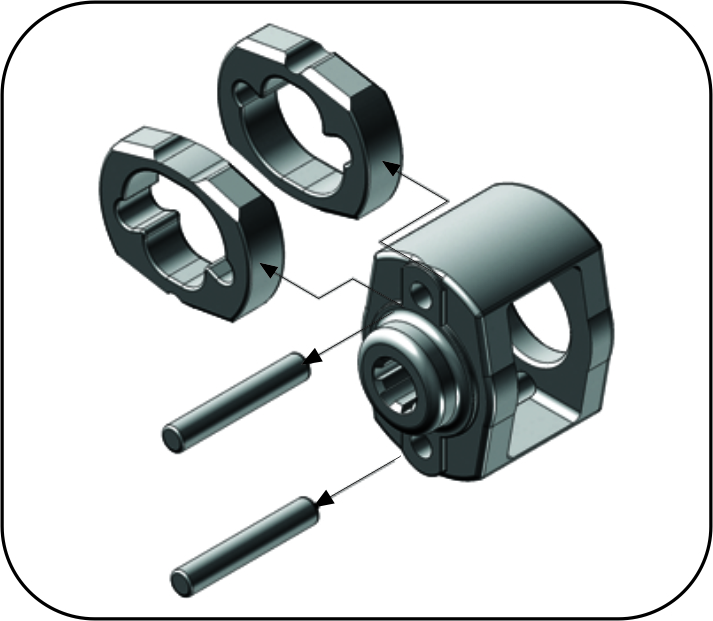

● Less vibration than single ring type.
● Overall Length : 140 mm
● Industrial Tools
● Forward have 3 different torque
Application:
Especially in heavy-productive industries rattan, motor.
● Long Lasting.
● Less vibration than single ring type.
● Overall Length : 140 mm
● Industrial Tools
● Forward have 3 different torque
Application:
Especially in heavy-productive industries rattan, motor.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
Packing :
Full Carton : 12 PCS / N.W.: 19.3 KGS / G.W.: 21.6 KGS / CUFT: 1.1 "
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inelt |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-906D4 | M16 | 270 | 200 | 450 | 332 | 10000 | 311 | 11 | 140 | 5.51 | 1/4 | 1.6 | 3.52 | 92 |
Packing :
Full Carton : 12 PCS / N.W.: 19.3 KGS / G.W.: 21.6 KGS / CUFT: 1.1 "
