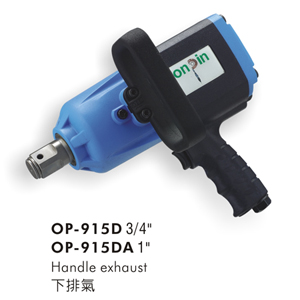

Specifications: OP-915D / OP-915DA: Handle exhaust
| MODEL | Bolt Size Capacity |
Working Torgue |
MAX. Torgue |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-915D | M24~M27 | 1300 | 958 | 2000 | 1475 | 3800 | 410 | 14.5 | 260 | 10.24 | 3/8 | 6.08 | 13.4 | 85 |
| OP-915DA | M24~M27 | 1300 | 958 | 2000 | 1475 | 3800 | 410 | 14.5 | 270 | 10.63 | 3/8 | 6.2 | 13.67 | 85 |
