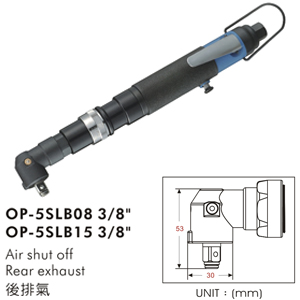

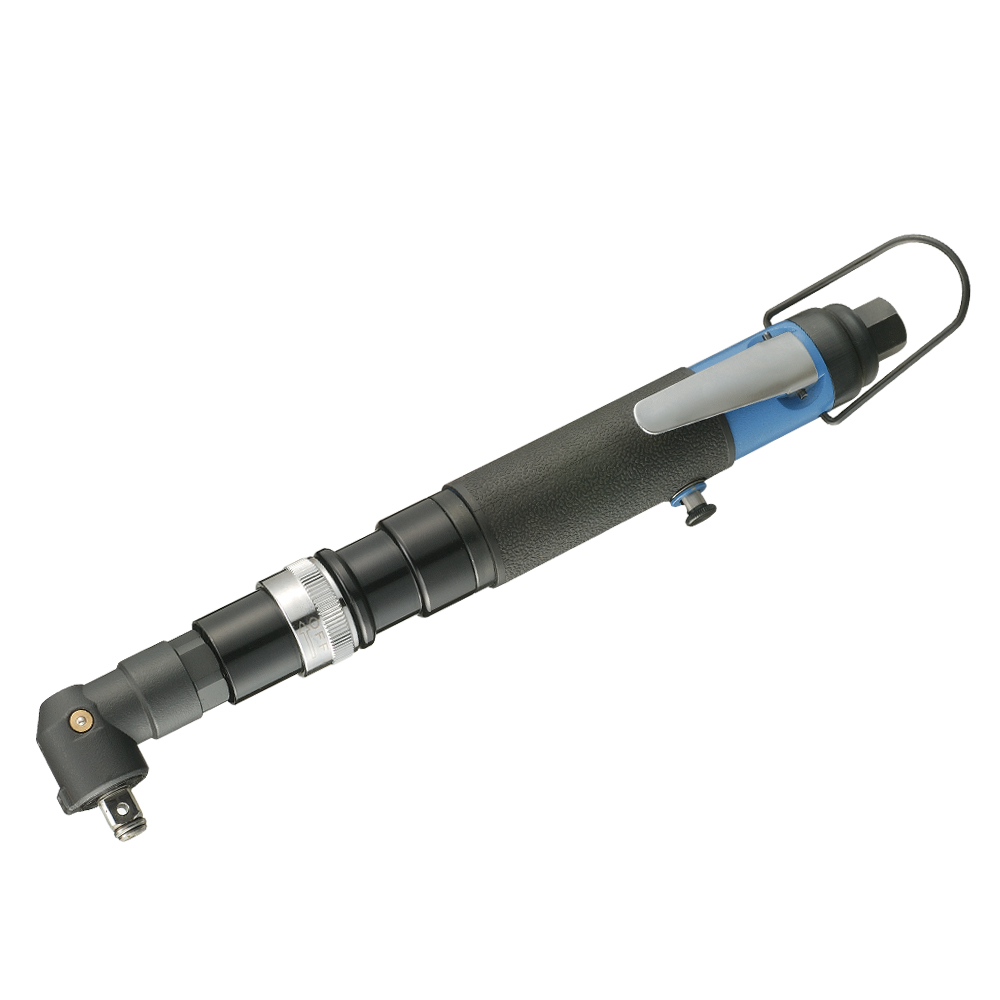

Specifications: OP-5SLB08 / OP-5SLB15: Air shut off, Rear exhaust.
.jpg)
| MODEL | Bolt Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||
| mm |
Nm | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-5SLB08 | M5 | 2.2~4.0 | 800 | 170 | 6 | 340 | 13.39 | 1/4 | 1.22 | 2.69 | 78 |
| OP-5SLB15 | M4 | 1.2~2.2 | 1400 | 170 | 6 | 340 | 13.39 | 1/4 | 1.22 | 2.69 | 78 |
