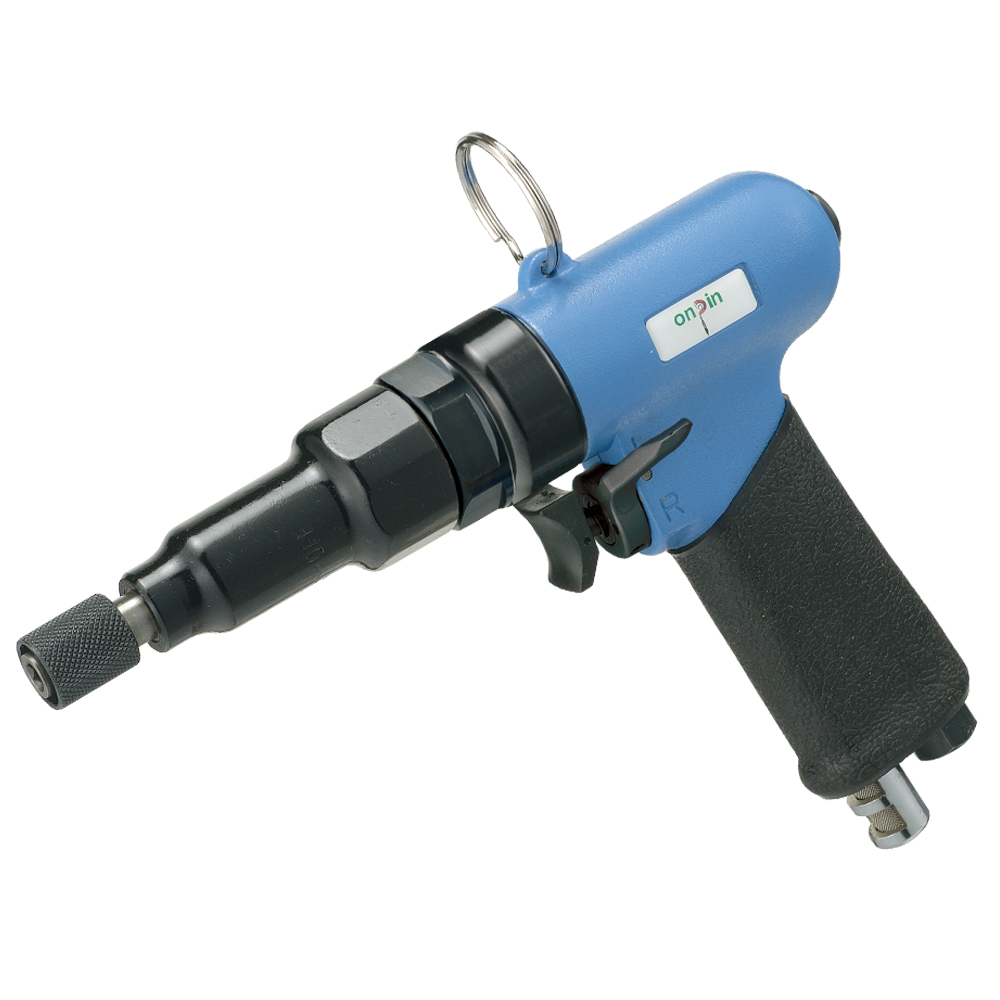

OP-405LN

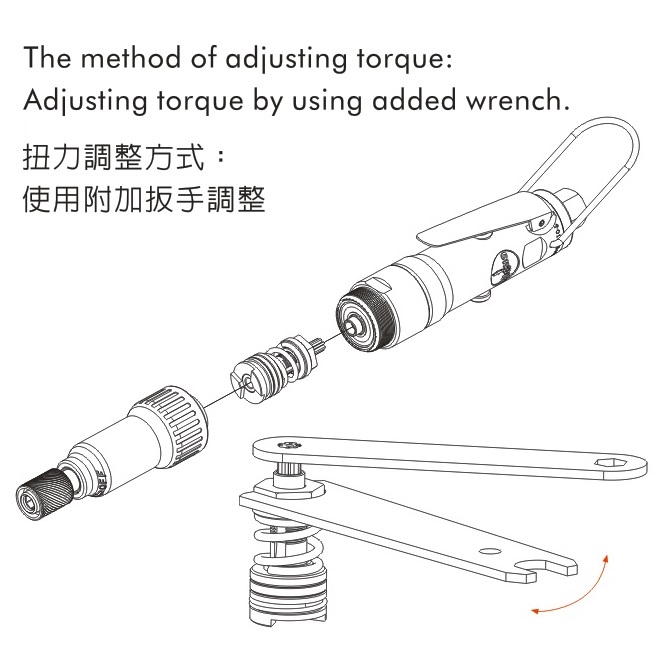

● With torque regulator.
● One hand operation forward and reverse
● Comfort Grip : Protects operator from cold and vibration.

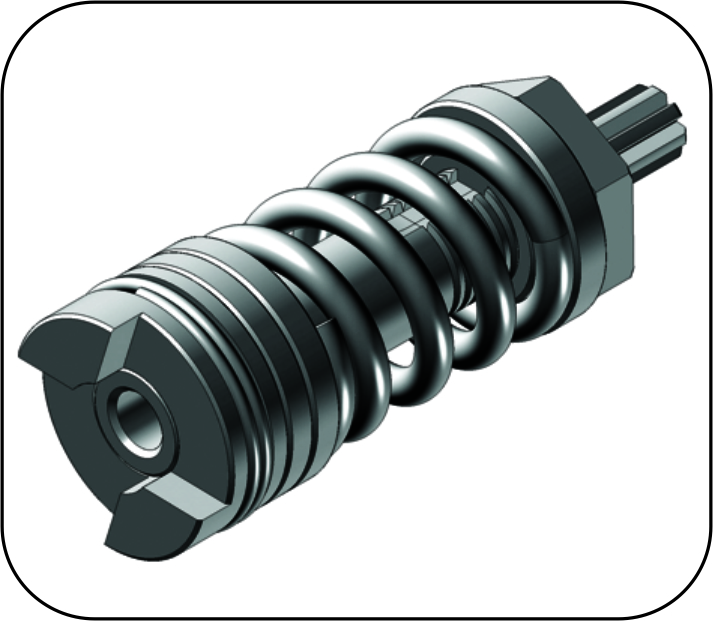

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.
● Down Handle Exhaust : can be rotated 360 degree to direct air away from operator.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● One hand operation forward and reverse
● Comfort Grip : Protects operator from cold and vibration.
● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.
● Down Handle Exhaust : can be rotated 360 degree to direct air away from operator.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits type |
||||
| Speed | |||||||||||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-405LN | 5 | 7 | 5.1 | 550 | 184 | 6.5 | 225 | 8.86 | 1/4 | 1.2 | 2.65 | 87 | Q |
Packing list:
Carton : 10 pcs / N.W. : 12 KGS / G.W. : 15.74 KGS / CUFT : 1.7"
