OP-306SL1K

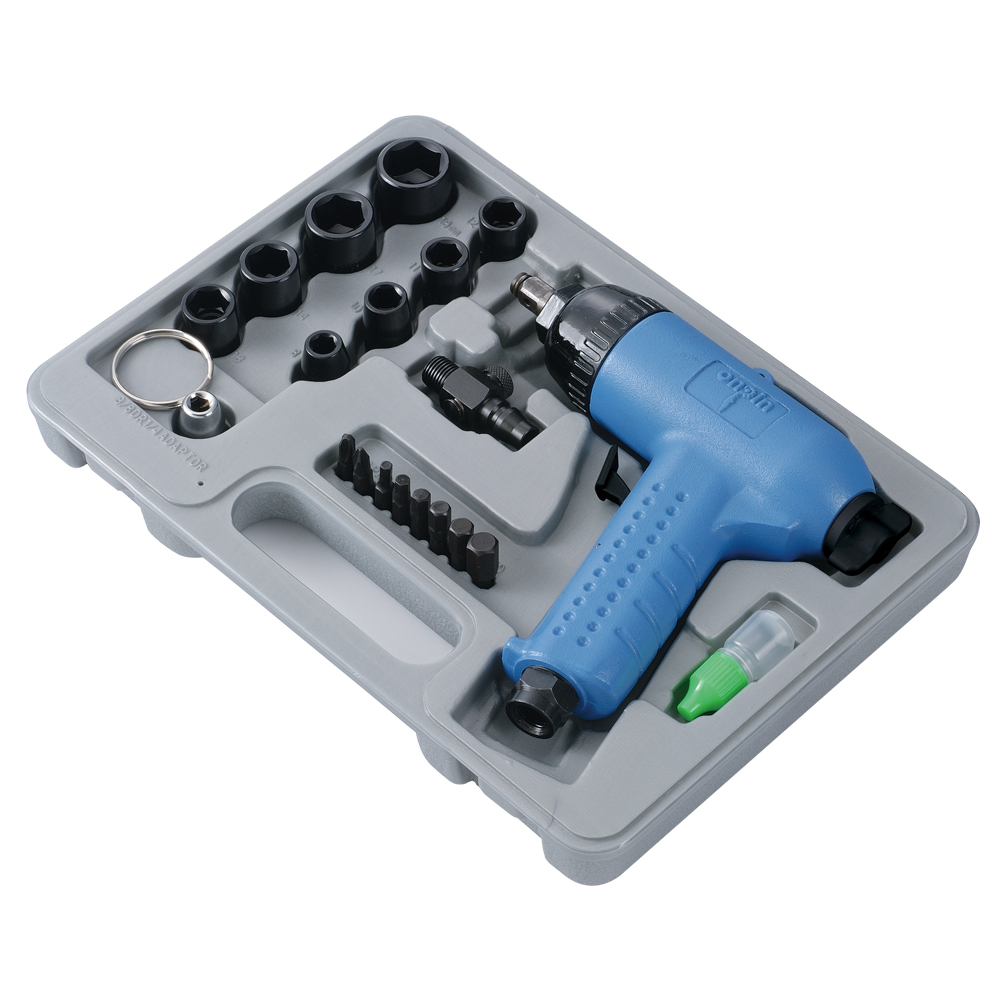

21PCS 3/8" Air Impact Wrench Kit
●1PC 3/8" Air Impact Wrench (OP-306SL1)
●8PCS 3/8" Socket 8,10,11,12,13,14,17,19mm
●6PCS 1/4" Hex 4,5,6,7,8,10mm x 30mm
●2PCS Phillips PH2, 3 x 30mm
●1PC Bit holder 3/8" x H1/4"
●1PC Oil pot
●1PC 1/4" PT Air regulator(JAPANESE STYLE)
●1PC Blow case
●1PC Hook
●1PC 3/8" Air Impact Wrench (OP-306SL1)
●8PCS 3/8" Socket 8,10,11,12,13,14,17,19mm
●6PCS 1/4" Hex 4,5,6,7,8,10mm x 30mm
●2PCS Phillips PH2, 3 x 30mm
●1PC Bit holder 3/8" x H1/4"
●1PC Oil pot
●1PC 1/4" PT Air regulator(JAPANESE STYLE)
●1PC Blow case
●1PC Hook
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-306SL1 | M10 | 80 | 59 | 200 | 148 | 8000 | 226 | 8 | 183 | 7.2 | 1/4 | 1.2 | 2.65 | 94 |
Packing List:
Carton : 10 Set / N.W. : 22.5 KGS / G.W. : 23.5 KGS / CUFT : 1.5"
