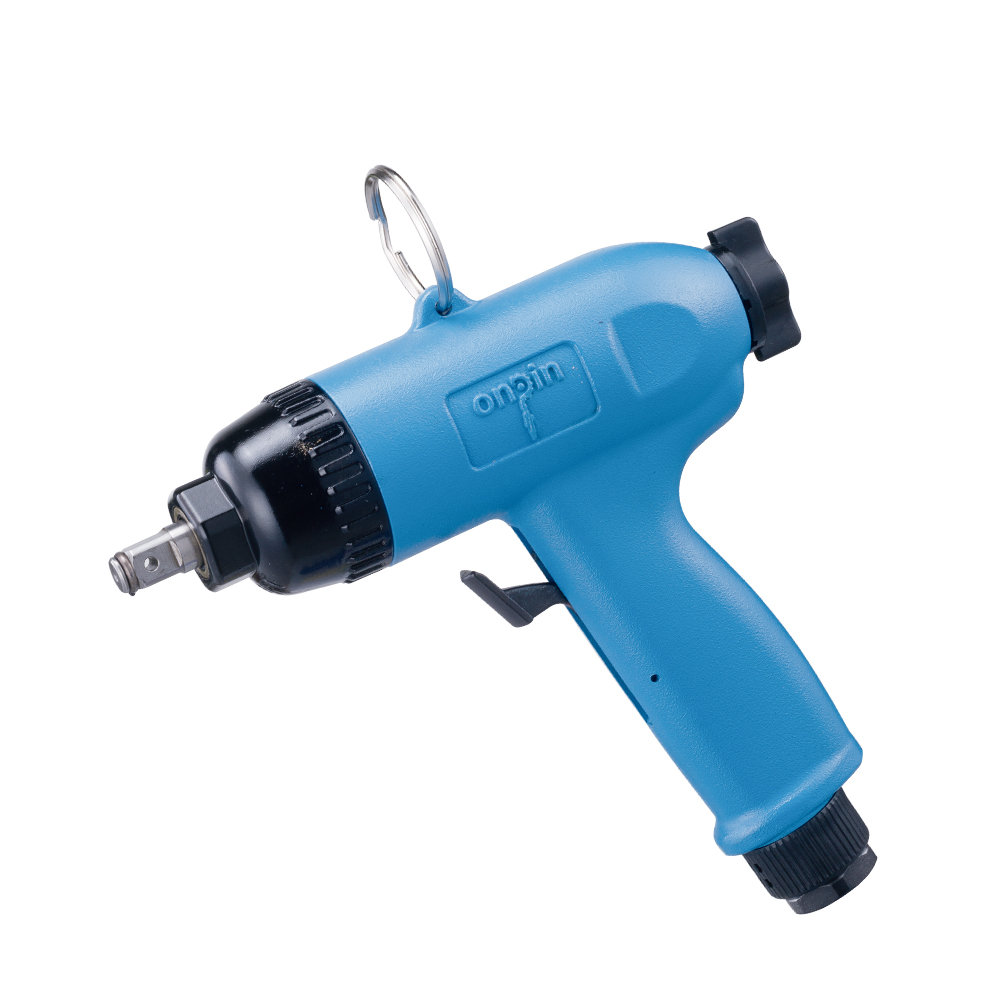

OP-306SL1
● High attack frequency.
● Low counteraction.
● high speed, high torque
● 360 degree rotate handle ehaust
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● high speed, high torque
● 360 degree rotate handle ehaust
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 10 Pcs / N.W. : 12.1 KGS / G.W. : 15.6KGS / CUFT : 1.1"
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-306SL1 | M10 | 80 | 59 | 200 | 148 | 8000 | 226 | 8 | 183 | 7.2 | 1/4 | 1.2 | 2.65 | 87 |
Packing List :
Carton : 10 Pcs / N.W. : 12.1 KGS / G.W. : 15.6KGS / CUFT : 1.1"
