SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |

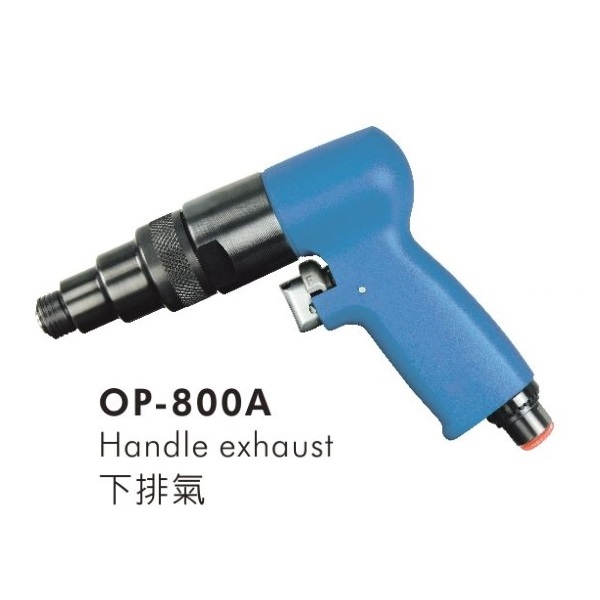

| OP-800A | 8 | 45 | 33.1 | 1800 | 367 | 13 | 175 | 6.89 | 1/4 | 1.13 | 2.49 | 88 |
Packing List:
Carton : 10 PCS , N.W .: 11.4 KGS , G.W. : 14.1 KGS , CUFT : 1.1 "
