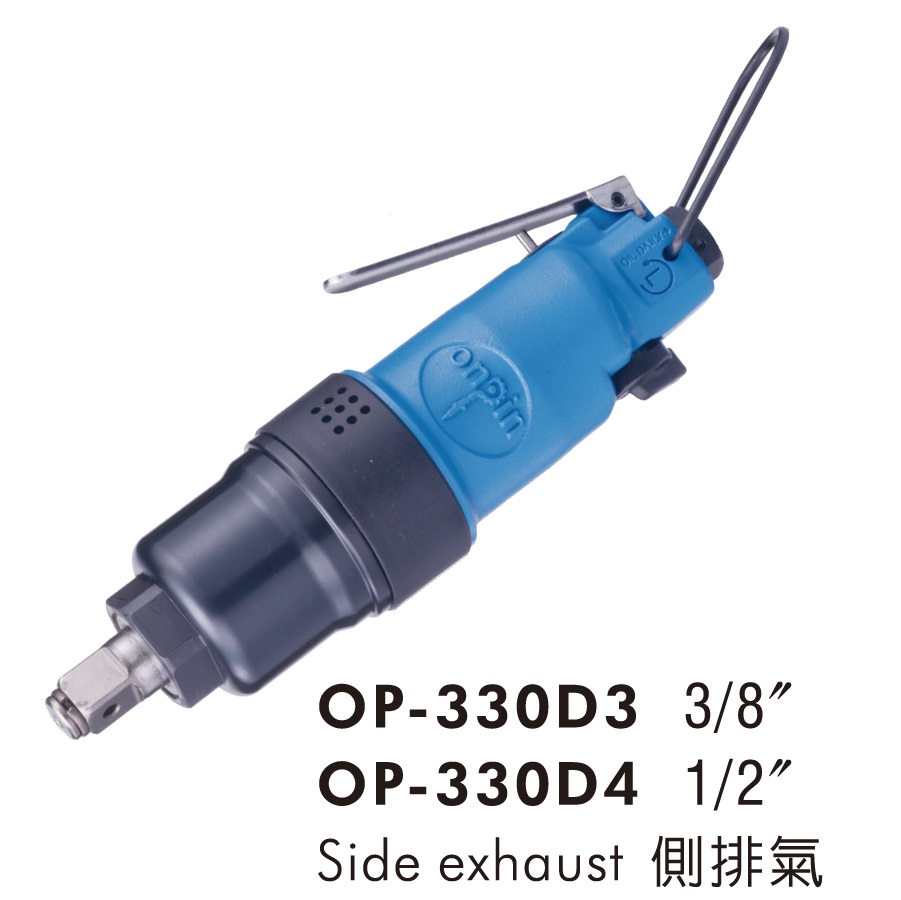

OP-330D3 & OP-330D4
● Large torque.
● Long lasting.
● 360 degree rotate side exhaust
Application:
Apply to heavy-productive assembly line of car and motor.
● Long lasting.
● 360 degree rotate side exhaust
Application:
Apply to heavy-productive assembly line of car and motor.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing :
Carton : 20 pcs / N.W. : 24 KGS / G.W. : 28.5 KGS / CUFT : 1.1"
| MODEL | Blot Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-330D3 | M12 | 140 | 103 | 300 | 221 | 8800 | 268 | 9.5 | 200 | 7.87 | 1/4 | 1.2 | 2.65 | 98 |
| OP-330D4 | M12 | 140 | 103 | 300 | 221 | 8800 | 268 | 9.5 | 200 | 7.87 | 1/4 | 1.2 | 2.65 | 98 |
Packing :
Carton : 20 pcs / N.W. : 24 KGS / G.W. : 28.5 KGS / CUFT : 1.1"
