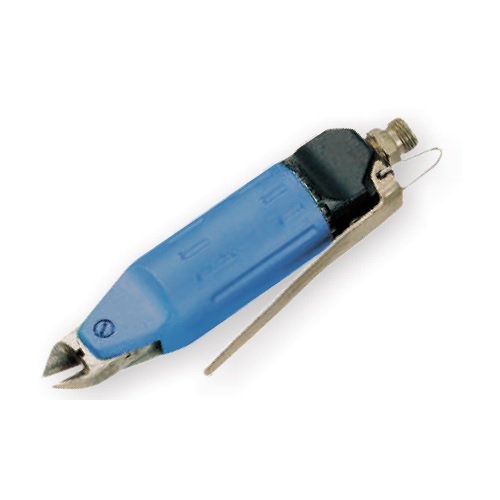

OP-202
●Air cutting nipper：
copper, iron, plastic, leather, mats, refrigerant, electric tube, glass fiber 、injection molding foot, parts angle, IC / copper feet, transformers / copper, communications / capacitors, motherboards, refrigerant, chips
●Air Terminal Crimper :
for the terminal crimping special tools (bare terminals, insulated terminals, closed terminals, etc.), for computers, refrigerators, air conditioners, electrical appliances, electronics industry ... for crimping terminals, wiring, connectors
copper, iron, plastic, leather, mats, refrigerant, electric tube, glass fiber 、injection molding foot, parts angle, IC / copper feet, transformers / copper, communications / capacitors, motherboards, refrigerant, chips
●Air Terminal Crimper :
for the terminal crimping special tools (bare terminals, insulated terminals, closed terminals, etc.), for computers, refrigerators, air conditioners, electrical appliances, electronics industry ... for crimping terminals, wiring, connectors
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Cutting Capacity Diameter | Housing Diameter |
Air Consumption |
Overall Length |
Air Inlet | Net Weight |
Blade | ||||||
| Copper(mm) | Iron(mm) | Φmm | l/min | cfm | mm | inch | P.T | kg | lb | ||||
| OP-202 | 1.6 | 1.0 | 30 | 28 | 1 | 160 | 6.3 | 1/4 | 0.26 | 0.57 | S4 | ||
Packing :
Carton : 20 PCS / N.W. : 5.32 KGS / G.W. : 9.44 KGS / CUFT : 1.1"

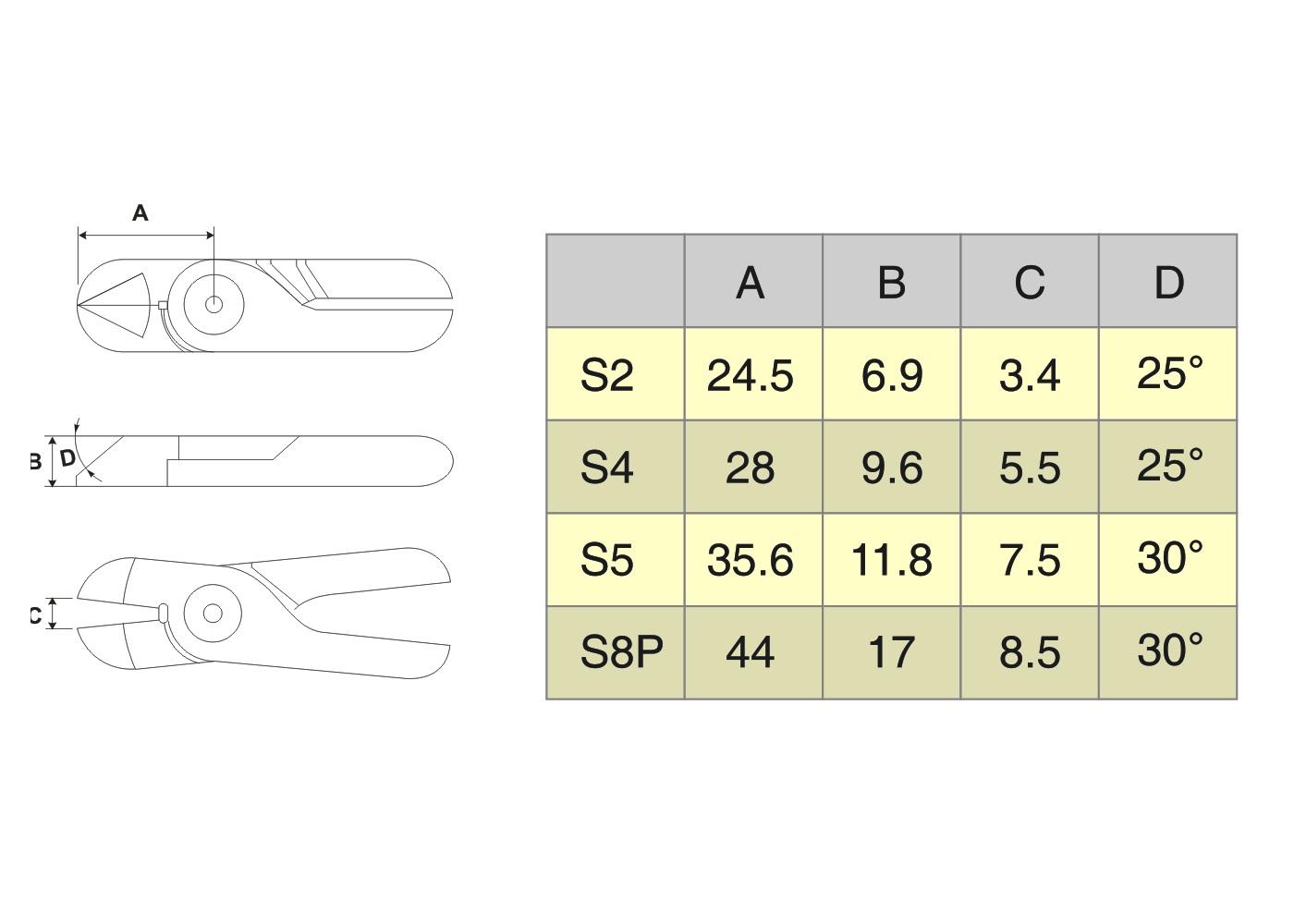

Blade Series
| Blade Model | Capacity (mm) | Body Model | Order Code | |
| Copper Wire | Iron Wire | |||
| S2 | 1.0 | 0.5 | OP-201 | OP-201 |
| S4 | 1.6 | 1.0 | OP-202 | OP-202 |
| S5 | 2.6 | 2.0 | OP-203 | OP-203 |
| 3.0 | 2.4 | OP-204 | OP-204 | |
| S8P | 3.3 | 2.8 | OP-205 | OP-205 |
| 4.8 | 4.0 | OP-206 | OP-206 | |
| Plastic Cutting Blade | ||||
| Blade Model | Capacity (mm) | Body Model | Order Code | |
| Soft Plastics | Hard Plastics | |||
| FD-2 | 2.0 | - | OP-201 | OP-201FD |
| FD-4 | 4.0 | 2.6 | OP-202 | OP-202FD |
| FD-6 | 5.0 | 4.0 | OP-203 | OP-203FD |
| 7.0 | 4.0 | OP-204 | OP-204FD | |
| FD-8 | 10.0 | 6.5 | OP-205 | OP-205FD |
| OP-206 | OP-206FD | |||
| Non-insulated Terminal | |||
| Blade Model | Capacity (sq) | Body Model | Order Code |
| A5P | 1.25sq | OP-203 | OP-203A5P |
| OP-204 | OP-204A5P | ||
| A7WP-3 | 1.25~2.0~5.5sq | OP-205 OP-206 |
OP-205A7WP3 |
| OP-206A7WP3 | |||
| A7P | 8.0sq | OP-206 | OP-206A7P |
| Insulated Terminal | |||
| Blade Model | Capacity (sq) | Body Model | Order Code |
| AR5P | 1.25sq | OP-203 OP-204 |
OP-203AR5P OP-204AR5P |
| AR7WP | 1.25~2.0sq、2.0~5.5sq | OP-205 OP-206 |
OP-205AR7WP |
| OP-206AR7WP | |||
| AR7P | 8.0sq | OP-206 | OP-206AR7P |
