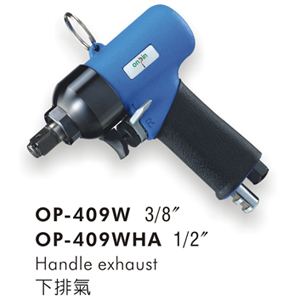

Specifications: OP-409W / OP-409WHA: Handle exhaust
| MODEL | Bolt Size Capacity | Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-409W |
M12 | 120 | 86 | 270 | 200 | 8500 | 254 | 9 | 155 | 6.1 | 1/4 | 1.32 | 2.91 | 88 |
| OP-409WHA | M12 | 120 | 86 | 270 | 200 | 8500 | 254 | 9 | 155 | 6.1 | 1/4 | 1.32 | 2.91 | 88 |
