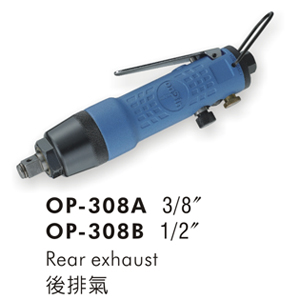

Specifications: OP-308A / OP-308B: Rear exhaust
Every motor revolution causing two hammer pin impacts at the same time to keep balance, lower vibration and larger output power.
Application: Apply to heavy-productive assembly lines of motor-vehicles, bicycles, and motor.
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-308A | M14 | 140 | 103 | 290 | 214 | 7500 | 240 | 8.5 | 230 | 9.06 | 1/4 | 1.3 | 2.87 | 90 |
| OP-308B | M14 | 160 | 118 | 290 | 214 | 7500 | 240 | 8.5 | 230 | 9.06 | 1/4 | 1.3 | 2.87 | 90 |
