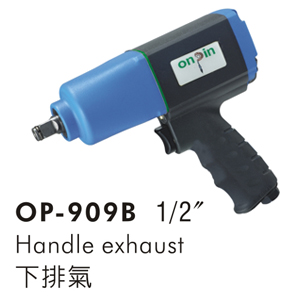

Specifications: OP-909B: Handle exhaust
Every motor revolution causes two hammer pin impacts at the same time to keep balance, lower vibration and larger output power.
Application: Apply to heavy-productive assembly lines of motor-vehicles, bicycles, and motor.
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-909B | M20 | 480 | 354 | 500 | 369 | 6500 | 339 | 12 | 210 | 8.27 | 1/4 | 2.2 | 4.85 | 90 |
